Garage Door Bottom Seal Styles

Picture #1

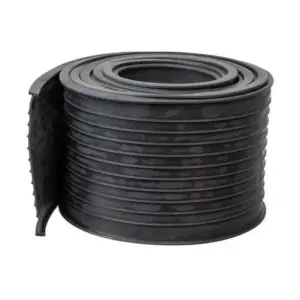

Bottom T-Rubber

Bottom "T" seals install on the bottom of residential and commercial garage doors to create a weather-proof seal that protects the inside from the elements. These rubber seals are made of flexible EPDM synthetic material that makes them ideal for durability in extreme temperature environments (-50°F to -350°F)

Product Highlights:

• Black in color

Made of durable and flexible EPDM synthetic rubber

Options

3 Inch Width

4 Inch Width

6 Inch Width

7 Inch Width

9 Inch Width

Picture #2

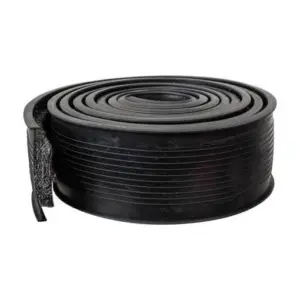

Rodent BLOCK Door Seals with Xcluder

Xcluder rodent block garage door seals are specially designed to keep rats, bugs, and other pests out of a residential garage or commercial warehouse. These rodent-proof bottom seals are ideal for applications that require a rigorous inspection process. It is of the utmost importance to keep out pests in applications like restaurants, hospitals, schools, or other facilities used for food storage/inspection; Xcluder’s RodentBlock door seals ensure that damage-causing pests won’t get inside and cause problems. These seals are a nontoxic, environmentally friendly solution to keeping out pests and don't use harsh chemicals like other rodent control products. The seals are USDA APHIS-tested, made from flexible neoprene rubber to conform to rough surfaces, and filled with Xcluder’s trademarked fabric that consists of a stainless steel mesh and strong poly fibers. The “T” design fits with any 0.25 inch channel bottom retainer from Action Industries.

Features

• Specially designed to keep out rats, bugs, and other harmful pests
• “T” ends compatible with any 0.25 inch bottom seal from
• Nontoxic, environmentally friendly solution to keeping out pests
• Doesn’t use harsh chemicals like other rodent control products
• USDA APHIS-tested
• Ideal for applications like Hospitals, schools, restaurants, hospitals, or any facilities used for food storage or inspection

Made from flexible EPDM rubber and a stainless steel/poly fiber mesh that creates a tight seal and keeps out pests, debris, and weather.

Options

3 Inch Width

4 Inch Width

Picture #3

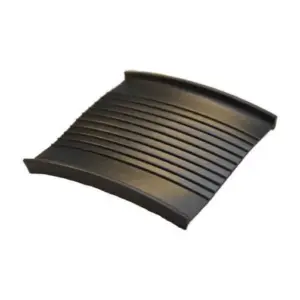

Bottom T Viynl

This bottom seal is made of high-quality vinyl specially engineered for reliable performance in low temperatures. The vinyl seal installs on the bottom of residential and commercial garage doors to create a long-lasting barrier against harmful outdoor elements.

Options

3 Inch Width

4 Inch Width

4-3/4 Inch Width

6 Inch Width

Colors

Black

Gray

Yellow

Picture #4

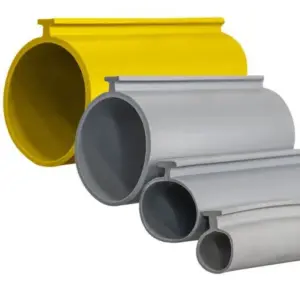

Bottom T-Bulb  Vinyl

Bottom "T" seals are made from a strong high-quality vinyl compound, that ensures protection against harmful outdoor elements, and can be used for both residential and commercial weatherproofing applications. The "T" design allows it to be compatible with all standard aluminum and plastic retainers.

Available options:

• Yellow, 1-1/2 inch width: V1500-YL-W
• Gray, 1/2 inch width: V0500-GR-W
• Gray, 1 inch width: V1000-GR-W

Gray, 1-1/2 inch width: V1500-GR-W

Options

1/2 Inch Width

1 Inch Width

1-1/2 Inch Width

Colors

Gray

Yellow

Picture #5

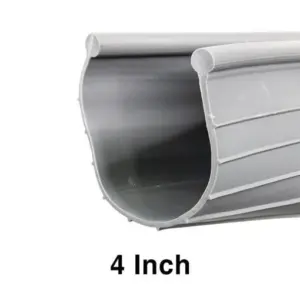

Bottom Bead End Vinyl

This seal is a long-lasting weather seal made of high-quality gray vinyl. The bead end weather seal effectively keeps out the elements in both residential and commercial environments.

Product Highlights:

• High-quality vinyl material
• Gray in color
• Protects commercial and residential garage interiors from the elements

Available Widths:

 3 inch, 4 inch, and 6 inch

Picture #6

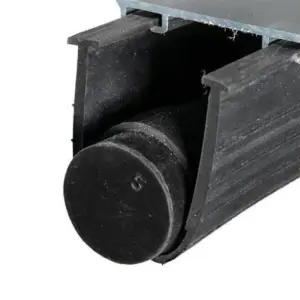

Super Seal

Super Seal is a garage door bottom seal with a specially designed pressurized tube that provides an extra layer of protection. The tube prevents the seal from flattening to create a better fit on rough terrain than other garage door weather seals. The “T” end is 0.25 inches and slides into compatible Standard retainers from Action Industries for an easy installation.

Features

• Seal is 4.20 inches laid flat, 1.90 inches when installed in a retainer
• Fits any garage door with a compatible 0.25 inch channel retainer
• Reduces energy cost
• Forms a tight, reliable bottom seal that keeps out pests, drafts, rain, dead leaves, and other outdoor debris
• Flexible material conforms to rough surfaces and seals gaps
• Two rubber end plugs included to place on both ends
• For both commercial and residential garage doors
• Compatible with pneumatic and conventional door bottoms
• Makes weatherstrip installation and maintenance easy


Picture #7

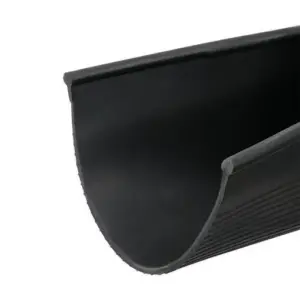

EPDM Rubber Seal, 4" Bottom Bead End, Black, .14" Bead

Bead End weather seal is designed to fit with most Finishline Commercial and Residential garage doors. The bead end is 0.125 or 1/8 in. in diameter and acts as a replacement for worn out or old weather seals installed on compatible Finishline garage door bottom retainers. Made from flexible and durable EPDM rubber that creates a tight seal where the bottom of a garage door meets uneven ground. Once installed, the seal will reliably keep out dirt, debris, leaves, harsh weather, drafts, and small pests.



Features

• EPDM rubber material is flexible, durable
• Seals the gaps at the bottom of residential and commercial garage doors
• Keeps dirt, debris, leaves, harsh weather, drafts, and small pests from getting inside
• Four inches when laid flat
• Compatible with most Finishline Commercial and Residential garage doors
• Bead End is 0.125 in. AKA 1/8 inch


Picture #8

Vinyl Seal, 4" Bottom Bead End, 1/8" Bead, Black

4 inch Bead End Vinyl Bottom Seal is a long-lasting and reliable weatherseal for Wayne Dalton residential and commercial garage doors. Made from a flexible vinyl compound that won’t warp with use or crack from low temperatures, this black seal installs on the bottom of garage doors to make contact with uneven floors and create a tight year-round seal. It’s 1/8 inch bead diameter fits most Wayne Dalton garage doors.

Features

• Installs at the bottom of residential and commercial garage doors to seal gaps on uneven surfaces
• Compatible Wayne Dalton models include 8000 and 9000 series steel doors
• Compatible with Foamcore, Thermaguard, and Thermawayne style doors
• Made from a durable vinyl compound that won’t crack or warp
• Black in color
• 1/8 inch bead end fits most Wayne Dalton garage doors
• 4 inches in width

Picture #9

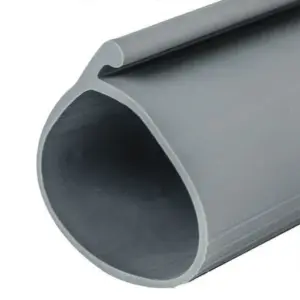

Bulb Weatherseal, 1.5", "P" Bulb

This seal slides into a P-bulb style galvanized metal retainer that is mounted at the bottom of garage doors. Once installed into the retainer, its flexible bulb design pushes against pavement and fills the gaps at the bottom of commercial and residential garage doors. The P-bulb garage door weather seal is compatible with most two-inch single layer rolling steel doors. Rolling steel doors are made from a single layer of durable steel, sometimes called pan doors, and are typically seen in Mini-warehouse or Mini-storage applications. The P-bulb style weather seal is popular with Genie and Overhead brand garage doors.

Features

• P-bulb diameter is 0.195 inches
• Made from a strong and flexible vinyl compound
• Grey in color
• Product SKUs: V0015, V0015-GR-W, V0015-GR-W-100
• Popular weather seal type for Genie and Overhead garage doors
• For commercial and residential applications
• Typically found on rolling steel doors


Picture #10

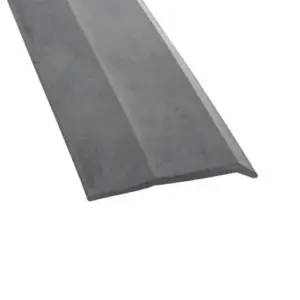

Nail On Seal, 1 3/8" Wood Door Bottom, EPDM

This seal is made of dense EPDM rubber that offers superior resistance to extreme temperatures and weather conditions. The nail-on seal can be easily installed on commercial and residential wooden garage doors with galvanized roofing nails. Once nailed to the bottom of a garage door the seal creates a cushion where the garage door and floor meet and keeps out drafts, pests, debris, and other weather.

Features

• Made from dense, durable EPDM rubber that is resistant to extreme weather
• Installs at the bottom of wood garage doors
• Creates a cushion between garage floor and boot of wooden garage doors
• Installed with galvanized roofing nails
• Reduces drafts, keeps out pests and other harmful weather

Dimensions:

• Width: 2-9/16 inches
• Depth: 1/8 inch
